ENGINE PERFORMANCE


If you don't see it, please contact us!

All images May Not be Vehicle Specific. For Display Purposes Only.

Please note, all power outputs stated are only approximations, for reference purposes and

will vary depending on each vehicle, its condition, fuel and modifications.


98-05 Subaru 2.5RS Borla Cat back Exhaust

Catback

The Borla catback exhaust for the 2.5RS is an excellent way upgrade to the look, sound, and performance of your car. Each system is built from premium T-400 stainless steel to give you the absolute best in performance and durability. Ultra-smooth mandrel bends ensure maximum flow and power while precision computer-controlled CNC manufacturing ensures an accurate fit. Best of all, Borla stands behind every system with a Million-Mile Warranty.

$700.00 Cat back System plus shipping



Stainless Steel Performance Catback Muffler

(304 Stainless Steel)

mufflerlong pipe

IMPREZA 2.5 RS

For those of you who want Performance.

Direct bolt on Rear muffler section is 3.5" resonated single tip. A favorite of enthusiasts for years. 50 state legal

Each system is made to order.

$800.00 plus shipping



HKS Hi-Power Exhaust Silent Hi-Power Exhaust
Hi-Power Catback
Inspired and designed from endurance and GT racing in Japan, HKS developed its Hi-Power Exhaust system for both turbocharged and naturally aspirated applications. HKS has incorporated this new race inspired offset muffler and piping design into many street applications, which offers a greater flow and higher-PRM power gains due to the less restrictive design. This is achieved by eliminating unnecessary bends for the straightest exhaust path.

For turbocharged applications, the large and smooth exhaust flow allows greater exhaust velocity for better mid-range boost response and high-RPM power. Naturally aspirated vehicles also benefit from greater exhaust flow capacity as engine tuning levels increase. Certain applications are available in a Silent Hi-Power version which has an inner silencer built into the muffler. Like Drager Exhaust systems, Hi-Power Exhaust systems are made from SUS304 stainless steel muffler and tip assemblies.

Specs:
Material     SUS304
Piping     75mm
Sound (Close)     91dB
Sound (Idle)     79dB
Tip Size     120mm
Tip Style     HP(TYPE-S)

Fitment: 1998-2001 SUBARU IMPREZA RS 4Cyl 2.5L Each system is made to order.

$1600.00 plus shipping



Bosal Catalytic Converter - Front and Rear for 2.5L

Catalytic Converter

Your car will truly become alive by just replacing your tired, old and restrictive Cat with the newest technology in Catalytic Converters. Air flow is increased dramatically, so even if you do not have a performance exhaust system, this Cat will greatly increase your HP and Performance. This is a direct bolt on, couldn't be easier. With a performance exhaust system, (headers and cat-back) things really begin to come alive!!

Notes: C.A.R.B Compliant - California/New York Engine Family Number YFJXV02.5JEH - Tier: LEV1 LEV

Detailed Notes: C.A.R.B Certified and legal for sale and use in California and New York
Position: Front and Rear

5 Year / 50,000 Mile Bosal Limited Warranty

*** Legal in California and New York ***

NOTE: Under Federal EPA regulation, replacement of original catalytic converters is allowed only if the original converter(s) is missing, or the vehicle has more than 50,000 miles or is at least five years old and the need for a replacement has been established and documented, or a local inspection program has determined the existing converter is in need of replacement.

1999-2006 2.5NA - $950.00 Cat Only plus shipping

Contact us for correct application

Note: Some installations will need to extend the rear O2 sensor wire.

All engine modification components, except those that are exempt, have been designed and are intended for off-highway application. These components are for racing vehicles only, which may never be used on public roads and highways. Federal and many state laws prohibit the removal, modification, or rendering inoperable of any device or element of design affecting vehicle emission or safety in a vehicle used on public highways. Violation of such laws may subject the owner or user to a fine or penalty. Installation of this part may void the warranty coverage, if any, on your vehicle. Vehicles modified by the use of performance parts may no longer be lawfully used on public highways. User assumes all cost and risks associated with these items.


Borla Performance Header System

header

The stock Subaru headers are extremely restrictive and clearly built to save costs, not make power. To remedy this design flaw, we offer the Borla Stainless steel headers. These headers feature nice, smooth mandrel bends with a much more effective layout which improves mid and high RPM torque and power. You get the 'boxer' sound the Subarus are famous for.

Borla Stainless Steel Headers $1200.00 plus shipping


All engine modification components, except those that are exempt, have been designed and are intended for off-highway application. These components are for racing vehicles only, which may never be used on public roads and highways. Federal and many state laws prohibit the removal, modification, or rendering inoperable of any device or element of design affecting vehicle emission or safety in a vehicle used on public highways. Violation of such laws may subject the owner or user to a fine or penalty. Installation of this part may void the warranty coverage, if any, on your vehicle. Vehicles modified by the use of performance parts may no longer be lawfully used on public highways. User assumes all cost and risks associated with these items.


Urethane hangers

Urethane Muffler Hangers

To reduce excessive exhaust movement, use Urethane hangers which are a direct replacement for the OEM hangers.

Urethane Exhaust Hangers (sold as set of 4) - $65.00 set of 4 plus shipping





Electric Exhaust Cutout Kit

This is

Electric Exhaust Cutout Kit includes 'Y' pipe, electric valve and switch.

This kit is designed to better your cars performance and feel. The cutout works by welding into your stock or modified exhaust. They can be placed anywhere after the headers. To open the cutout you press a switch, which opens cutout, releasing your exhaust. This enables you to bypass your muffler, increasing horsepower and giving your car an extremely throaty rumble.



Never crawl under your car to remove the cap from your cutout
Maintenance free design!
CNC Machined 6061-T6 aircraft grade aluminum body
.375 diameter 316 Stainless Steel Shaft
Torrington Needle Bearings for years of trouble free service
High torque gear motor Plug and play 16GA. Belden Wiring Harness
Small black rocker switch is only .75" X .50"

Pipe Sizes Available:

4.0"
3.5"
3"
2.5"


Electric Exhaust Cutout Kit $500.00 plus shipping

Please indicate pipe size

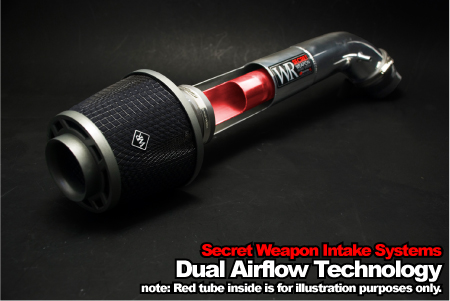

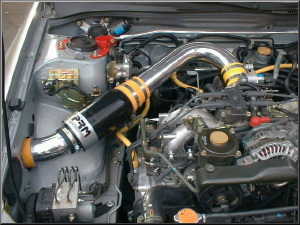

Intakes for 2.5 NAs 1998-2007

This Intake System was designed, to increase air intake volume to the engine. The concept is to create two different air velocity profiles, one traveling at higher speeds than the other does. This technology increases air volume and speed to the engine, which naturally feeds the engine 3x more air than the conventional air intake system. The intake pipe is bent out of high quality 6061 Aluminum on our Automated CNC mandrel bender. Polished to a high show quality finish. The SW1 Air filter features a tuned velocity stack to increase velocity and decrease turbulence.

Polished Finish

Please specify MAP or MAF sensor

Subaru Impreza 2.5L 1998-2007: $410.00 plus shipping



2000-2001 Subaru 2.5L Cold Air Intake

2000_2001 intake 2.5L
The Race Design series intake systems for the 00-01 2.5RS are designed for those Subaru performance enthusiasts in need of more mid-range power. Race Design intakes strategically place the intake air filter in the passengers's fender, allowing for cooler and more dense air to be ingested. Cooler air means more power, throttle response, faster spool and an overall more enjoyable driving experience. By reducing turbulence and providing a less restrictive flow through the high performance filter, each RD intake system is engineered to provide improved horsepower and torque gains over the stock setup.

Each 6061, T-6 aluminum alloy intake is finished off with an Injen performance dry nano-fiber air filter with built-in velocity stack. Includes stainless steel clamps, high quality silicone hoses, and instructions.

Polished Finish

MAP sensor

Subaru Impreza 2.5L 2000-2001: $410.00 plus shipping



95-99, 05-07 Subaru Impreza / Forester / Legacy performance airflow meter intake Kit

This clever modification allows using the factory intake tubing, while replacing the restrictive stock air filter box.

The MAF intake filter kit replaces the OEM air box and converts vehicles equipped with an air mass meter into an open element intake system. The result is - highest possible horsepower and torque gain. This increases the performance for your ride, due to the restriction of an airflow meter and the OEM air filter system. The airflow meter intake system comes with the Dragon Filter and all necessary mounting hardware and, silicon adapters to complete the installation.

$240.00 plus shipping



Short Ram Intake Kit

05+ RS/Forester/Baja/Legacy having 'MAF' Sensor

The aluminum tube intake is equipped with a CNC machined 6061 aluminum MAF piece to ensure proper air flow readings. The intake uses a cone filter for maximum air flow with safe filtering from the outside elements. The cone filter will stay clean and is reusable for the life of the vehicle. The intake is mounted to the frame with a high shine silver aluminum “L” bracket using the stock intake box mount to hold it securely. Connecting the intake to the inlet pipe is done with a 3 inch silicone coupler.

The intakes are available in Wrinkle Red or Polished. Intakes are available with either a black, blue, or red silicone coupler.

Note: Because of the wide range of MAF programming, occassionaly a Subaru may see a CEL, which can be removed by using engine management. The probability of seeing a CEL is one out of one hundred, but they do happen.

$250.00 plus shipping

please indicate: Wrinkle Red or Polished & Black or Blue or Red Silicone Coupler



Short Ram Intake Kit

2008 Subaru Impreza

This intake kit is a short ram. The kit features a CNC aluminum MAF sensor mount on the intake tube with built in fins to keep air flow laminar. The intake kit includes a 5ply AP silicone coupler with clamps for easy install.

Note: Because of the wide range of MAF programming, occasionally a Subaru may see a CEL, which can be removed by using engine management. The probability of seeing a CEL is one out of one hundred, but they do happen.

$260.00 plus shipping



MAF Adapter for 98-99 Impreza

Does not come painted.

Allows you to build your own cold air intake increasing performance 12-15hp.

Bolts to the end of the MAF (Mass Air Flow Adapter)

$49.99 plus shipping




AP Subaru 2.5L, Crank Pulley

The AP lightweight crank pulley for your Subaru EJ20, EJ22, and EJ25 motor is going to add about 7chp, lost from the OEM heavy pulley. The CNC machined aluminum pulley is made from high grade 6061 material and finished in either a Flat Black or Gloss Silver color. The pulley has been broached for a perfect fit and the redesigned lightweight center gives you the best possible advantage over the competition.

The AP pulley is the same diameter as the stock pulley. Keeping the diameter the same allows no issues to occur with the alternator as under driven pulleys do sometimes. Weighing only 1.0lbs, it is almost 5lbs lighter then stock. This is also the lightest crank pulley on the market. This gives you quicker throttle response as well as more horsepower and torque. Saving on rotating mass results in better performance.

The AP pulley is a great performance part for your Impreza, WRX, STI, Legacy, and Forester vehicle.

$200.00 plus shipping




SMT8 PIGGY-BACK ECU

The SMT PIGGY-BACK ECU has been designed to answer the question

“how is my car going to get tuned”?

FAQ

The SMT8 piggy-back system has unparalleled performance and a quantum leap of technical innovation. This is all possible with the latest 16 bit DSP processors, crammed full of features that you've never seen before. T

One of the new features is the fully programmable engine protection, which monitors the engine's performance. Should anything exceed the engine's specifications, the SMT8 will gradually reduce the engine's power after a programmable time delay, in essence looking after your engine. This is absolute MAGIC!

The external display output is also new for the SMT8 series. It allows our digital display to receive data from the SMT8 and selectively display the desired value without the presence of a PC. The displays are small with bright attractive LED colour options. Multiple values can be displayed on a single display by simply toggling between them.

An average installation consists of connecting 6 wires to the vehicle's ECU wiring loom, changing the settings of the SMT8 in the setup section of the LetRipp II Tuning Software and voila - you are ready to re-tune the vehicle. An experienced installer can install an SMT8 unit within 30 minutes for a basic installation. The primary features of the SMT8 will take longer to install, simply because there are more wires, but it is worth the wait.

The SMT8 can drive one extra injector (13 ohm) for supplementing fuel at high boost. The extra injector can be controlled via Throttle/RPM, AMP and Engine Temp maps. This allows for precise fuel delivery at boost conditions - a feature which is very popular with turbo and supercharger installations.

Set-points is a feature which makes the SMT8 stand apart from the other piggy back chips. It allows for the implementation of gear shift lights, fan control, idle assistance to mention a few. It has three relay outputs which can be switched on via 14 different signal sources. All Set-point functions can be combined in a logical fashion, and full polarity (higher than/lower than) selection is possible, even switching between the two operating maps is possible.

Two full operating maps (Map A and Map B) are present in the SMT8. Each operational map is capable of being switched into operation in real time while you drive or even when your Set-point function comes true. Switching between the two maps can also be achieved by having an external dash board switch installed, having one operational map for max power and the other for fuel consumption. The options are endless! The LetRipp II Tuning software is able to switch and lock operational maps to facilitate the tuning process.

Two wide band LSU-4 channels can be tuned simultaneously with the SMT8 version 3. This is feature is the major difference between version2. A large 16 x 24 map (384 tune sites) allows for the precise AFR (Lambda) signal modification via the two wide band inputs and outputs. The AFR is mapped via Throttle/RPM, AMP and Engine temperature. Two narrow band AFR (Lambda) probes can also be tuned simultaneously with the two wide band probes. This feature is invaluable for V6 and V8 applications where there are two wide bands probes and two narrow band probes. All 4 lambda probes can be tuned at the same time with one SMT8 unit.

Detailed HELP is available on the unit while the software screen is open. Simply move your mouse over an item and right click and hold down the button. A help description will appear detailing the function of that item. This help feature is invaluable because you get the help from the unit and not from an out of date printed manual. The software manual is also provided with every purchase and should be used as a reference guide, where the item help should be treated as the Holy Grail.

The mapping of all this is done via a high speed USB port and the user friendly, state-of-the-art LetRipp II Tuning Software. All tuning is done in real time and all entered values have immediate effect on the operation of the unit. All in all the SMT8 is the best piggy-back system on the market. It can do everything ... except make a cup of coffee!


SMT8-USER KIT $700.00 plus shipping

SMT8 User Kit:

1 x SMT8 Standard Piggy-Back Controller
1 x SMT8 Tuning Harness
1 x USB Communication Cable
1 x CD with LetRipp Software and Manuals



Feature
Benefit

System definition Tailor the unit to your application
Ignition advance/retard limits Restricts ignition modification range
Start second specification Prevents action after power-up
Analogue Upper/Lower limits Prevents analogue over-ranging
Frequency modification Tune a frequency airflow meter
Frequency upper/lower limit Prevents frequency over-ranging
Boost control Controls the turbo boost
Boost loop gain parameter Set the Boost control gain
Cut protection action Signal cut when protected
Retard protection action Retards ignition when protected
Modify protection action Proportional protection
Frequency protection Protects a frequency signal
AMP protection Protects an AMP signal
Engine Temp. Protection Protects the engine temperature
Air Temp. Protection Protects the air temperature
RPM protection Protects RPM
Time before protection action Specify time before action takes place
Ignition window For not so perfect crank signals
Analog modification channels Allows you to map two engine signals
Wide band AFR modification Allows two banks AFR tuning
Narrow band AFR modification Two after-CAT modifications
Tune narrow from wide AFR Map both Narrow and wide AFR together
CUT AMP+ENGT protection Cut Protection with logical AND
Retard AMP+ENGT protection Retard protection with logical AND
External display specification Tailor your display needs
TPS calibration Adopt to your TPS sensor
TPS direction Specify Up/Down direction
Engine temp. Calibration Two-point adaptation to your engine
Air Temp. Calibration Two-point adaptation to your engine
AMP calibration Linear adaptation to your engine sensor
RPM calibration Set the operating range
Set-point control operates any of 3 outputs
Two RPM set points Switch action on RPM limit
Two temperature set points Switch action on temperature
One AMP set point Switch action on AMP
One TPS set point Switch action on TPS
Two analogues input set points Switch action on two analogue inputs
Two analogues output set points Switch action on two analogue outputs
Two narrow AFR set points Switch action on narrow AFR
Two wide AFR set points Switch action on wide AFR
Two injection set points Switch action on injection length
One Boost set point Switch action on Boost
Logical combination of set points Logical AND, OR
Map switching from set points Invoke different tuning map
External display testing Verifies the external display function
Teeth per injection setting Operates the external injector timing
Teeth per crank turn Adapt to your crank trigger wheel
Edges per crank turn Adapt to your crank trigger wheel
Acceleration enrichment Extra fuel when it’s needed
Ignition map with 384 points For three dimensional Ignition tuning
Ignition AMP map Provides AMP ignition tuning
Ignition Engine temp. map Provides Engine temperature ignition
Ignition Air temp. map Provides Air temp. ignition tuning
7 steps per degree ignition Very fine ignition replica
Injection map with 384 points Two maps for two injection activation
Injection AMP side map Provides AMP injection tuning
Injection Engine temp. side map Provides engine temp. injection tuning
Injection Air temp. side map Provides air temp. Injection tuning
Analogue maps with 384 points For fine tuning of two analogue signals
Analogue AMP side map Provides analogue AMP tuning
Analogue Engine temp. side map Provides analogue Engine temp. Tuning
Analogue Air temp. side map Provides Analogue Air temp. Tuning
Frequency or PWM tuning Both signals can be tuned
Frequency map with 384 points For fine tuning a frequency/PWM signal
Frequency AMP side map Provides frequency AMP tuning
Frequency Engine temp. side map Provides frequency engine temp. tuning
Frequency Air temp. side map Provides frequency air temp. tuning
Boost basic PWM setting Two PWM settings for different loads
Boost air temp. map Different PWM settings for different loads
Boost Target map Precise boost target control
Manual map switching From the dashboard
Automatic map switching From the set point control
PC map switching For loading set ups in to different maps
USB 2.0 communication Communication and optional power
Built-in factory test With dates and results
Administration text field For saving manufacturing data
Dealer info text field For dealer identification
Branding text field Branding information
Password text field Access control
Maximum RPM recording User retrievable recording
Maximum Engine temp. record User retrievable
Maximum Air temperature User retrievable
Maximum AMP recording User retrievable
Fault indication on all major items Easy installation and trouble shooting
Re-flash enabled Field upgradeable
Altitude compensation For influencing fuel mixture
Comprehensive help text Easy understanding without manual
27 point hardware test procedure Tests every hardware function
Engine real-time data For monitoring and display
