LIST OF INSANITY

2000 RS 'SUPERCHARGED'

Modifications completed or to be completed

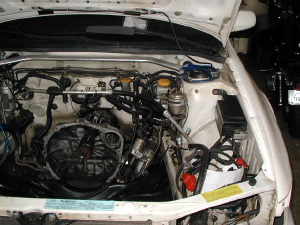

ENGINE: Xcceleration Custom Built 2.35L

Xcceleration Designed and Engineered 2.5L heads, with Custom Cylinder Head Porting, Polishing and Valve job for Supercharging

*Specifically Engineered for Low and Mid-Range Torque for Acceleration

-1mm Larger Intake Valves: 22% Increased Flow (max)

-1mm Larger Exhaust Valve: 41% Increased Flow (max)

Custom Cams, Springs and Retainers, developed for Supercharging, 7500 r.p.m. Redline

Custom Billet 80mm 'Oversized' Throttle Body

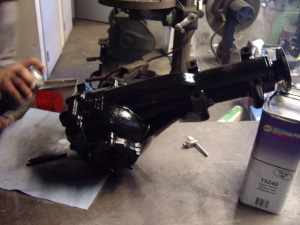

Custom Built 'Y' Intake Manifold - 3'' Primary Runners / 2'' Secondary Runners

2.5L Short Block, Destroked to 2.35L, Open Deck, T-Sleeved for maximum reliability: Capable of over 40 psi

Custom Long ARP Head Studs

Custom Engineered - Forged 9.1:1 Racing Pistons with High strength Carbon 5210 Bearing Steel (Cryogenically Tempered)

Custom Hi-Performance Head Gaskets w/ Copper Rings

Custom Hollow Piston Pins (Cryogenically Tempered),

Custom Long Billet Rods - Polished and Computerized Balance

Custom Forged Crankshaft - Computerized Balance, Polished then, Cryogenic and Nitride Treatment

Custom Billet Lightened Flywheel - Computerized Balance

Custom Competition Radiator: Modified

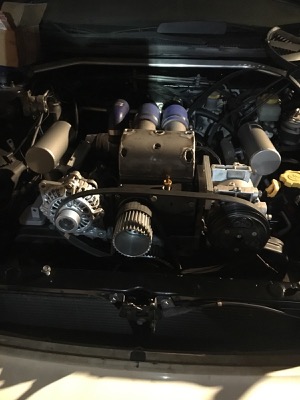

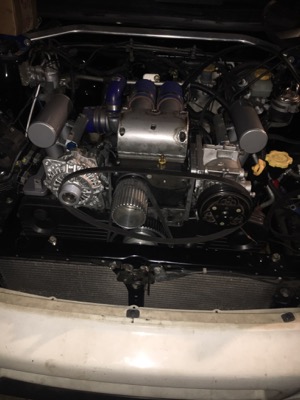

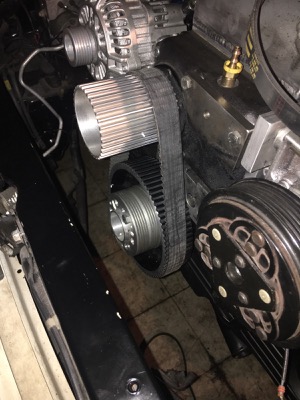

Custom Built Twin Screw Supercharger, with Custom Brackets, 25psi Toothed Pulleys and Belts (over 80% Efficiency)

Custom Air Intake

Custom Water to Air Intercooler Cooling System with Front Mounted Radiator with Fans and 45 gpm Water Pump

Custom By-Pass Valve - Vacuum Sensitive and 100% Recirc.

Modified Hoses and Lines

Custom Painted Engine - Red and Tubing - Silver

Custom Variable CC Injectors - 600cc to 900cc - controlled by fuel pressure

STi Individual Spark Plug Coils (4) and custom made connectors

255cc In The Tank Fuel Pump

High Capacity External Fuel Pump (support 800hp)

Custom Fuel Lines - Large Diameter Feed - Engine to Gas Tank

Custom Fuel Rails - Parallel Fuel Delivery, Large Diameter Feed

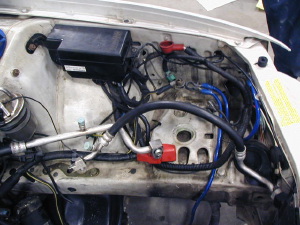

Earthing System - Blue Wires

Link Stand-a-Lone Engine Management System - Custom Tuned - Maps for 110 Octane and 93 Octane

Racing Underdrive Power Pulleys

Performance Spark Plugs

Hi-Output Optima Blue Top Battery

Adjustable Fuel Pressure Regulator

STi Engine Mounts

AP Billet Engine Stabilizer Bracket

Custom Built In the Trunk Gas Surge Tank w/ pumps

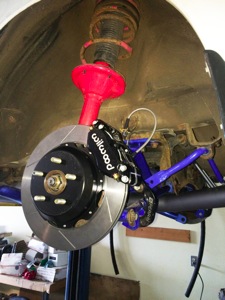

BRAKES

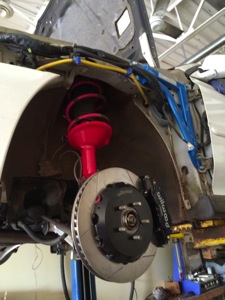

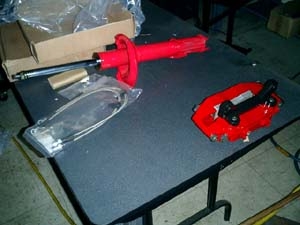

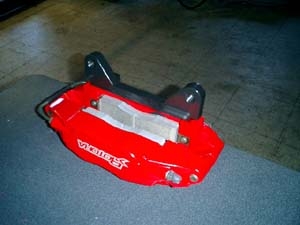

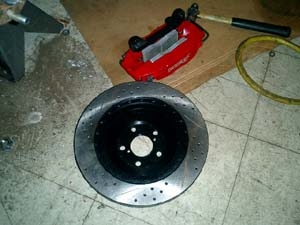

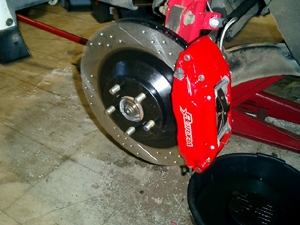

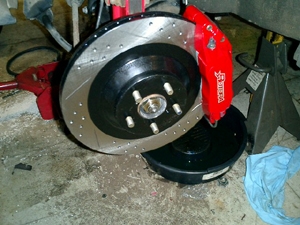

Rotora Big Brake Kit, Front 13'' (330X24) Slotted Rotor and Large 4 Piston Caliper Rotors Front

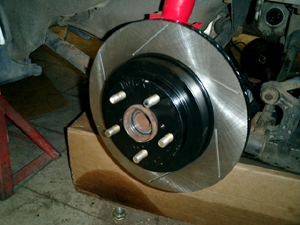

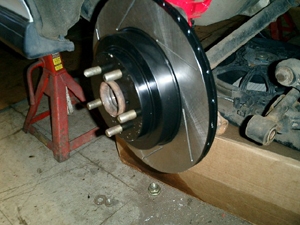

Rotora Big Brake Kit, Rear 12'' (290X18) Slotted Rotor and Large 2 Piston Caliper Rotors Rear

Stainless Steel Brake Lines – Front and Rear

Rotora Street Performance Pads – Front and Rear

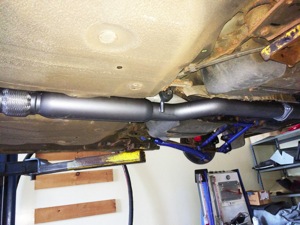

EXHAUST

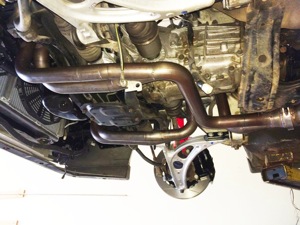

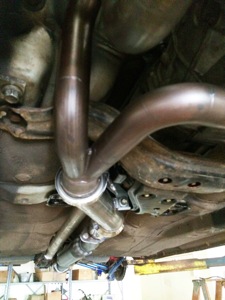

Custom 4-2-1 Equal Length Stainless Steel Header for Supercharger, with 3'' Collector

Custom Xcceleration/Random Super Hi-Flow Metallic Catalytic Converter 3'' Pipe

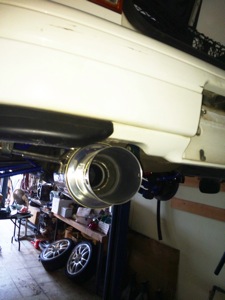

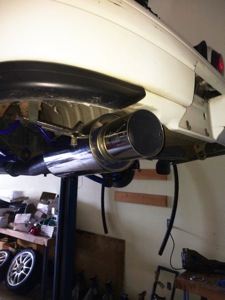

JDM Hi-flow 3'' Cat Back Exhaust System with 5'' tip

Urethane Exhaust Hangers

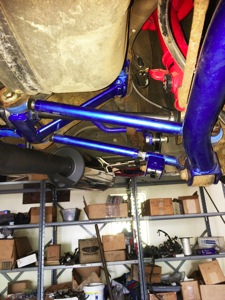

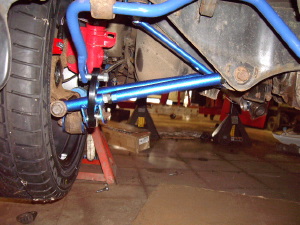

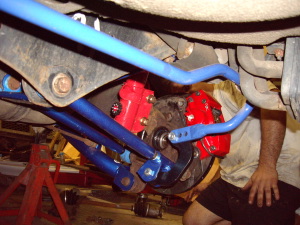

SUSPENSION

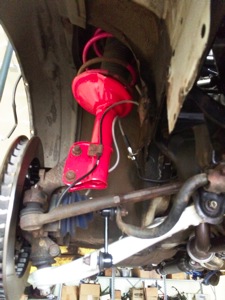

KYB AGX Adjustable Struts - Front and Rear

STi Springs Lowered 30mm

Cusco Front Strut Tower Bar

Cusco Rear Strut Tower Bar

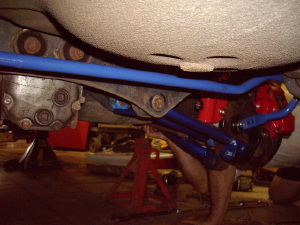

20mm STi Rear Swaybar

Positive Steering Response System

Whiteline Custom Steering Rack Bushing Kit

Front and Rear AP Sway Bar Links

Custom Front Under Brace

Tein Pillow Ball Mount (Front)

STi Pillow Ball Mount (Rear)

GT Spec Rear Lower Tie Braces

GT Spec Front Fender Reinforcement Brace

GT Spec Rear T-Braces

JDM GC8 Aluminum Front Lower Control Arms

Cusco Rear Trailing Arm

Cusco Lateral Link Kit: Front and Rear

DRIVETRAIN

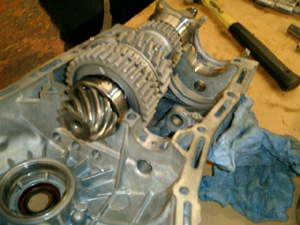

Full Billet (1-5) 'Performance-Race' Synchro Transmission Gearset with Extra Tall Gear Ratios:

1st - 2.916

2nd - 1.91

3rd - 1.35

4th - 0.967

5th - 0.738

Custom Heavy Duty Clutch

Billet 13lbs Flywheel

STi Tranny Mounts

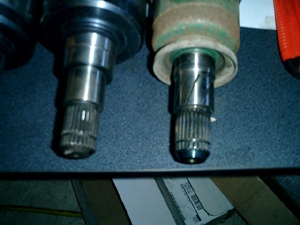

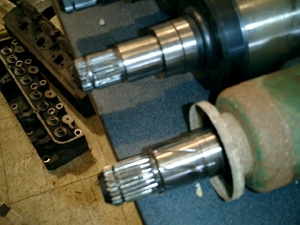

Custom Racing Front and Rear Axles

Custom Racing Aluminum Single Drive Shaft

Xcceleration Engineered Short Throw Shift Kit with Poly Bushings

Cusco Hardened Shifter Bushings

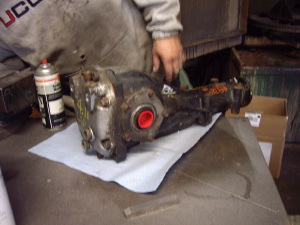

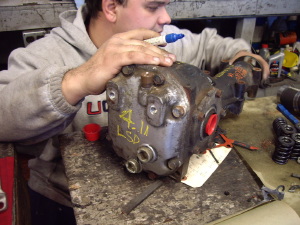

LSD 4.11 Rear Differential

Redline Shock Proof HW Oil

INTERIOR

MOMO 'Shuttle' Steering Wheel

Sparco Competition Pedal Set

STi Seats

Carbon Fiber Trim

Custom Shift Knob

GReddy White Face 52mm Gauges: EGT, Fuel Pressure, Oil Pressure, Oil Temperature, Boost Gauges

APillar Pod

Center Gauge Pod

Column Gauge Cup

AEM Wide Band Air/Fuel Gauge

Deluxe CD/Tape/Stereo/Weather Radio

High Output Stereo Speakers

Interior Floor Mats

EXTERIOR

Custom White Exterior Paint

Front Clear Fender Blinkers

Clear Front Turn Signal Lens

Clear Front Parking Lights

Piaa Super-Xtreme bulbs: H4 Headlights and H3 Fog lights

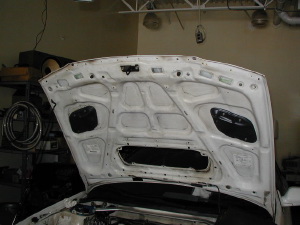

Chargespeed Reverse Hood Scoops

STi VI Front Spoiler

STi VI Front Grill

STI VI Wing/ Clear LED Brake Light

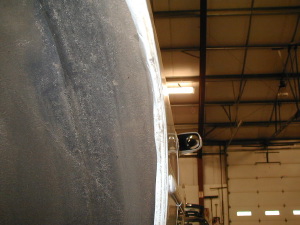

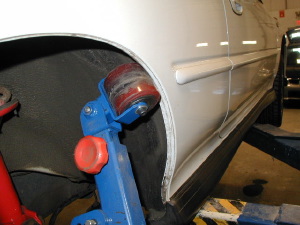

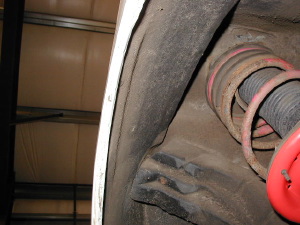

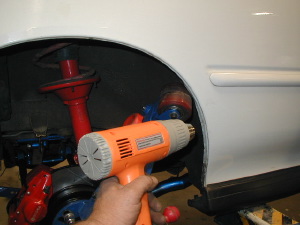

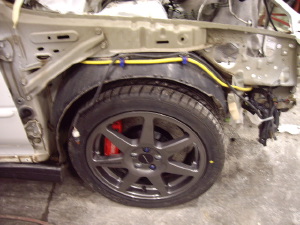

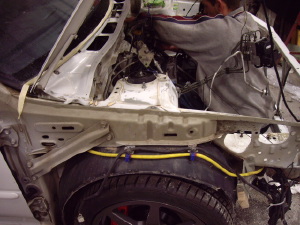

Custom Rolled Fenders and Enlarged Wheel Well

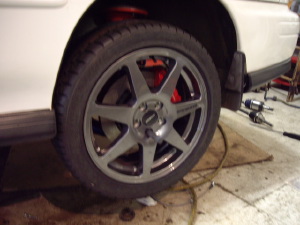

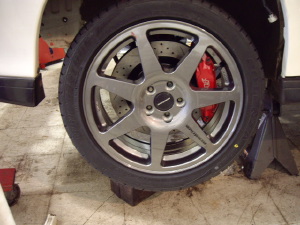

Prodrive P7 Mags 17x7 - Anthracite

225/45-17 Performance Tires

Clear Headlight Protection

Supercharger - Info FAQ

	MORE TO COME

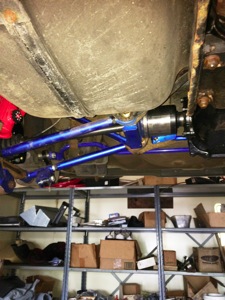

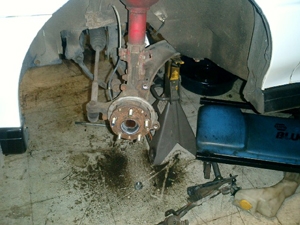

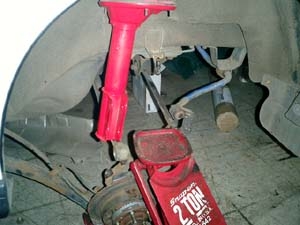

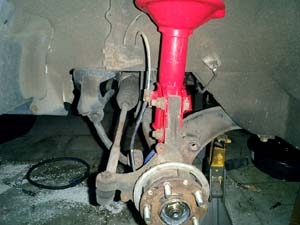

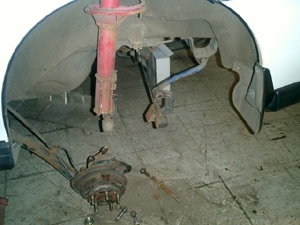

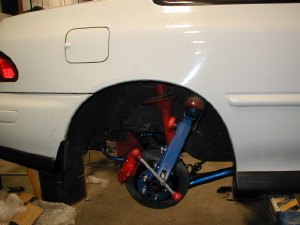

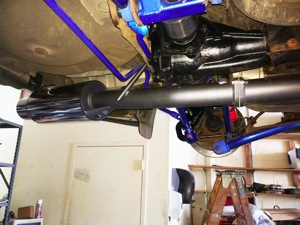

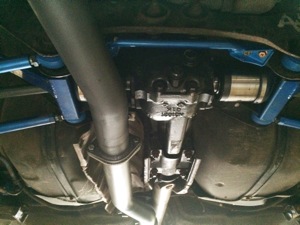

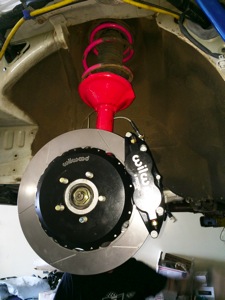

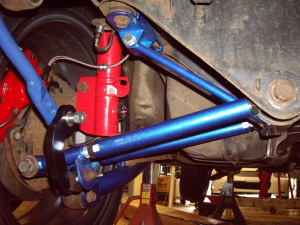

	SUSPENSION, BRAKES, AXLES

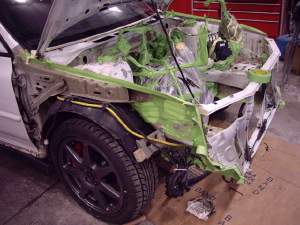

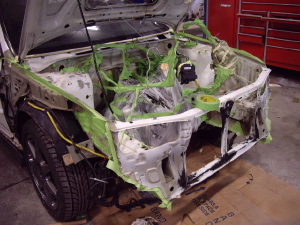

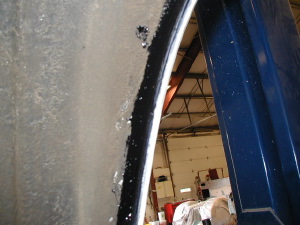

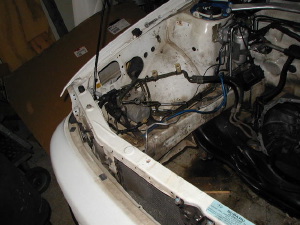

	BODY WORK - MORE TO COME

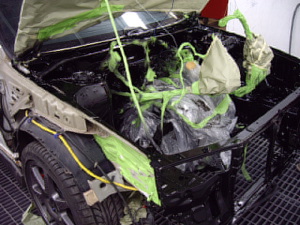

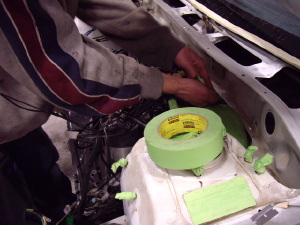

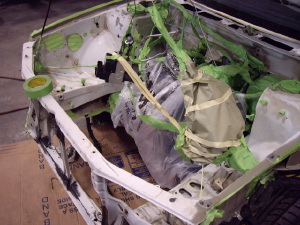

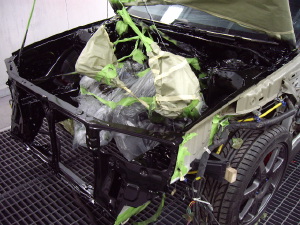

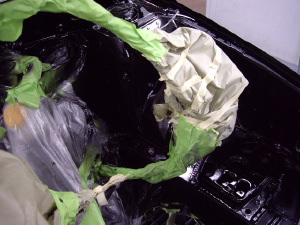

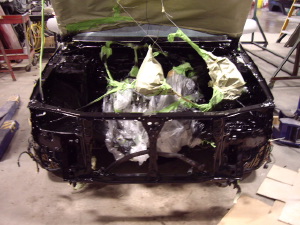

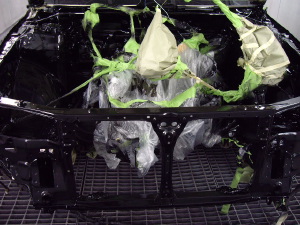

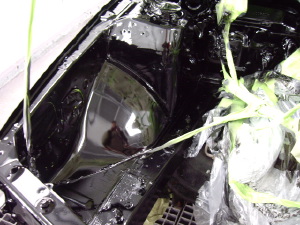

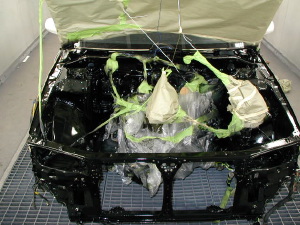

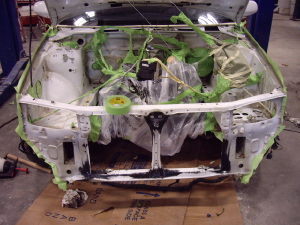

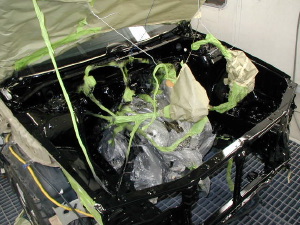

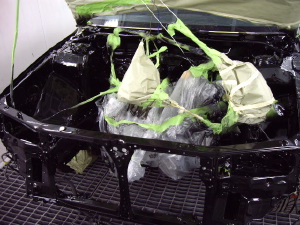

	NEXT THE CAR WILL BE PAINTED

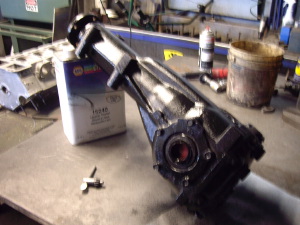

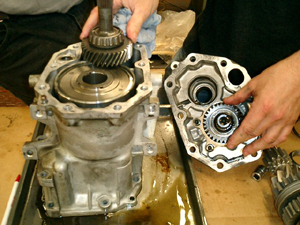

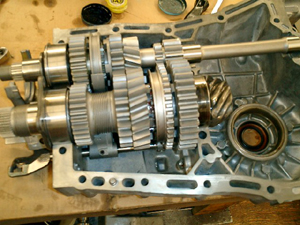

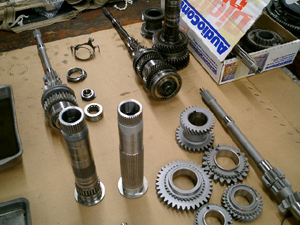

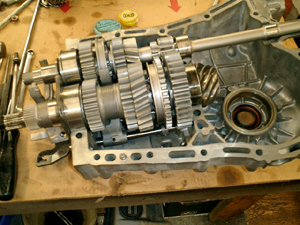

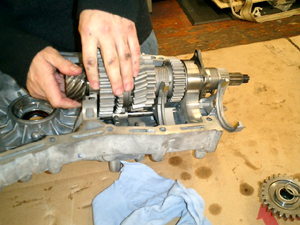

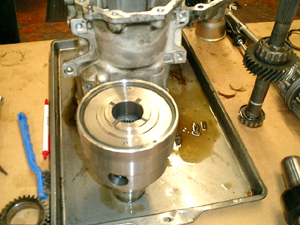

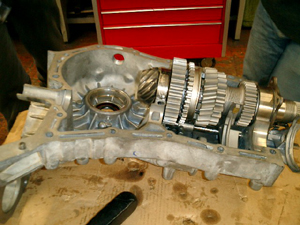

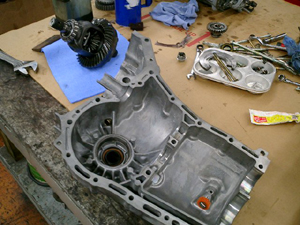

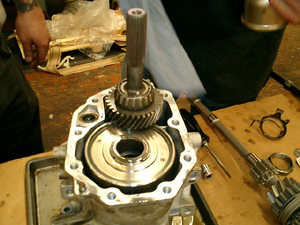

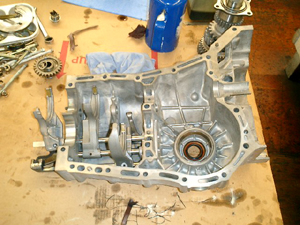

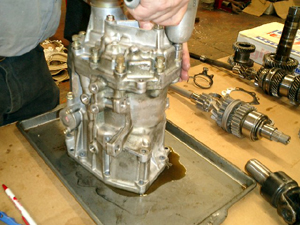

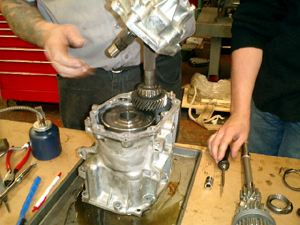

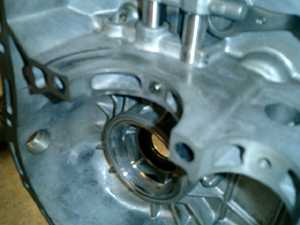

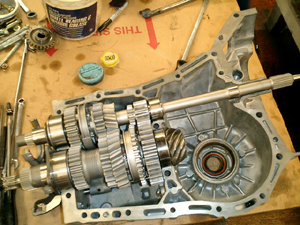

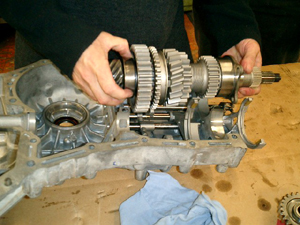

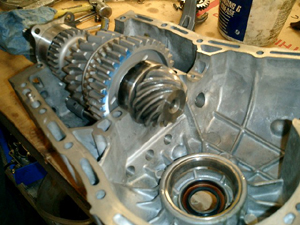

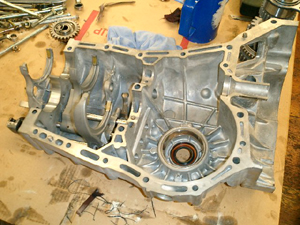

	TRANSMISSION GEARSET UPGRADE INSTALLATION OF BILLET GEARS












	MORE TO COME WORK IN PROGRESS
