Brakes

If you don't see it, please contact us!


Please be patient, certain parts are made per order and require time to manufacturer. All parts will be immediately shipped as they become available. All prices do not include any shipping, taxes or installation charges. All orders are considered 'Special Order' and are paid in full at time of order via wire transfer or as arranged.


Rotora Big Brake Kits for WRX, STi, Forester XT, Baja Turbo, Legacy GT

'Real' Big Brake Performance for the whole car: front and rear.


Three Big Brake Systems


Fully cast and CNC machined aluminum to ensure the highest quality; This long pursuit resulted in the development of the 2-piston, 4-piston, and the all new 6-piston caliper brake system with 2-piece directional vented discs (330mm and 355mm). Lightweight, rigid, and sophisticated in design, these brake systems enable superior brake modulation while improving overall pedal feel to ensure equal distribution of weight transfer when braking. To achieve this proportional brake balance, Rotora?s 2-piece cast aluminum calipers are fine tuned by increasing the clamp load to the optimal level while utilizing the stock master cylinder to retain overall front-to-rear brake bias. Designed and engineered to each specific application, these brake systems comes complete with a set of 2-piece vented drilled and/or slotted oversize discs, pre-assembled calipers (2, 4, or 6-piston), ceramic competition race pads, stainless steel brake lines (D.O.T. compliant), carbon steel mounting brackets (SC45), and all necessary hardware. All Rotora brake systems are direct bolt on replacement of the stock front brake system with minimal modifications required (ex: some applications requires the removal of the stock dust cover shield).

Street Challenge For Street-Track
Super Challenge For Full-Track Only
RCCBS (Rotora Carbon-Ceramic Brake System) Street-Track Use

Call For Brake Kit, Rotor, Pad or SS Brake Line Fitment and Pricing

Rotora Big Brake Price List

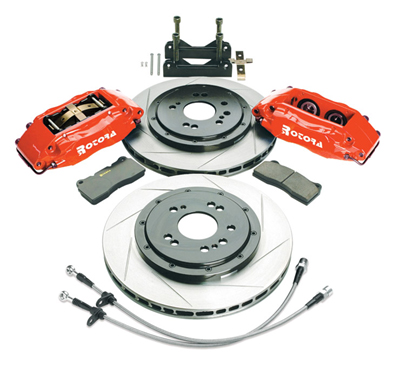

Front - 4-PISTON 330X30 2-PIECE (13'' rotor)

Front - 6-PISTON 330X30 2-PIECE (13'' rotor)

Front - 6-PISTON 355X32 2-PIECE (14'' rotor)

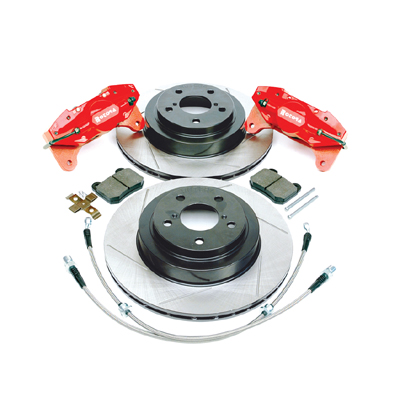

Rear - 2-PISTON 330X30 2-PIECE (13'' rotor)

Rear - 2-PISTON 355X32 2-PIECE (14'' rotor)

Rear - 4-PISTON 330X30 2-PIECE (13'' rotor)

Rear - 4-PISTON 355X32 2-PIECE (14'' rotor)


Subaru Impreza WRX, Forester XT, 2002+

Subaru Impreza STi, 2004+

Legacy GT, Baja Turbo, 2002+

Tribeca 2006+

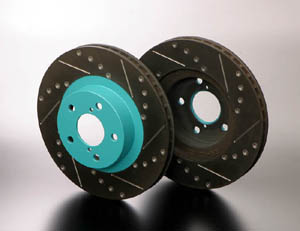

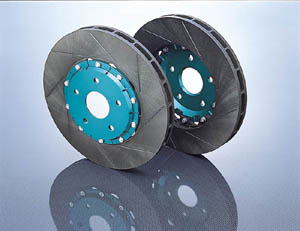

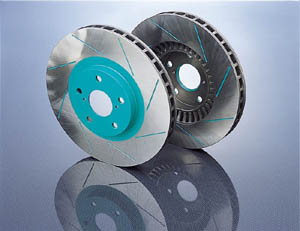

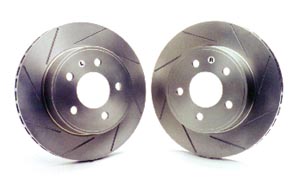

Rotors

Street / Track

Track / Full Race Pads

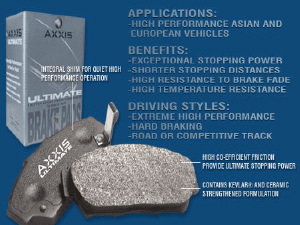

Pads

Street / Track

Track / Full Race Pads


Stainless Steel Brake Lines



CERAMIC COMPOSITE BIG BRAKE SYSTEM

Minimum Wheel Size : 18'' Wheel

(You will need to check your wheel offset)


Option1: Rotora Ceramic Composite Brake System (RCCBS) with Street Challenge Calipers

Front:
RF6 (6-Piston Caliper): Forged, Aluminum Pistons with Dust Boot Seals (Red or Metallic blue)
355 x 32mm (14”) Carbon Fiber reinforced Silicon Carbide (C/SiC)
Billet Aluminum Hat: 6061-T6 (Anodized Black)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H3 RCCBS Pads
Stainless Steel Brake Lines: DOT Compliant

Rear:
4-Piston Caliper: Forged, Aluminum Pistons with Dust Boot Seals (Red or Metallic blue)
355 x 32mm (14”) Carbon Fiber reinforced Silicon Carbide (C/SiC)
Billet Aluminum Hat: 6061-T6 (Anodized Black)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H3 RCCBS Pads
Stainless Steel Brake Lines: DOT Compliant

$16,000 USD for set of 4 (front/rear) plus shipping


Option2: Rotora Ceramic Composite Brake System (RCCBS) with Super Challenge Calipers

Front:
RF6 (6-Piston Caliper): Forged, Titanium Piston Inserts, Anti-Knockback Springs, Natural Anodize Finish
355 x 32mm (14”) Carbon Fiber reinforced Silicon Carbide (C/SiC)
Billet Aluminum Hat: 6061-T6 (Natural Anodize Finish)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H3 RCCBS Pads
Stainless Steel Brake Lines: DOT Compliant

Rear:
4-Piston Caliper: Forged, Titanium Piston Inserts, Anti-Knockback Springs, Natural Anodize Finish
355 x 32mm (14”) Carbon Fiber reinforced Silicon Carbide (C/SiC)
Billet Aluminum Hat: 6061-T6 (Natural Anodize Finish)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H3 RCCBS Pads
Stainless Steel Brake Lines: DOT Compliant


$18,000 USD for set of 4 (front/rear) plus shipping


OPTION 3: Rotora Super Challenge Brake System - No Ceramic Composite

Front:
RF6 (6-Piston Caliper): Forged, Titanium Piston Inserts, Anti-Knockback Springs, Natural Anodize Finish
355 x 32mm (14”) 2-Piece Directional Disc: Slotted, Heat-Treated
Billet Aluminum Hat: 6061-T6 (Natural Anodize Finish)
Extended Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H9 Carbon-Metal Endurance Pads
Stainless Steel Brake Lines: DOT Compliant

$4,000 USD for set of 2 (front) plus shipping


Rear:
4-Piston Caliper: Forged, Titanium Piston Inserts, Anti-Knockback Springs, Natural Anodize Finish
355 x 32mm (14”) 2-Piece Directional Disc: Slotted, Heat-Treated
Billet Aluminum Hat: 6061-T6 (Natural Anodize Finish)
Extended Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H9 Carbon-Metal Endurance Pads
Stainless Steel Brake Lines: DOT Compliant

$3,500 USD for set of 2 (rear) plus shipping


OPTION 4: Rotora Street Challenge Brake System - No Ceramic Composite

Front:
RF6 (6-Piston Caliper): Forged, Aluminum Pistons with Dust Boot Seals (Red or Metallic blue)
355 x 32mm (14”) 2-Piece Directional Disc: Heat-Treated (Slotted or Drilled/Slotted)
Billet Aluminum Hat: 6061-T6 (Anodized Black)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H2 Ceramic Street Pads
Stainless Steel Brake Lines: DOT Compliant

$3,500 USD for set of 2 (front) plus shipping


Rear:
4-Piston Caliper: Forged, Aluminum Pistons with Dust Boot Seals (Red or Metallic blue)
355 x 32mm (14”) 2-Piece Directional Disc: Heat-Treated (Slotted or Drilled/Slotted)
Billet Aluminum Hat: 6061-T6 (Anodized Black)
Float Drive Hardware
Billet Aluminum Caliper Bracket: 7075-T6
H2 Ceramic Street Pads
Stainless Steel Brake Lines: DOT Compliant

$2,500 USD for set of 2 (rear) plus shipping



Wilwood 4 Pot Front - Subaru 12-13 inch Slotted Big Brake Kit $1,700.00

Finally! An affordable 4 pot big brake kit that ALSO FITS under the STOCK 16" WHEELS!

The radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

The Wilwood 4 pot FRONT brake kit is what you have been looking for...

Kit includes:
2 - 4-Pot Black Calipers
2 - TWO PIECE ROTORS (slotted) - 12.00" Diameter
Mounting Brackets and Hardware
BP-10 Pads
Stainless Steel Brake Lines

The BP-10 is an all-new type of metallic composite friction pad compound. It possesses the medium to high temperature range friction characteristics of a metallic compound race pad, with the quieter engagement, lower dust, and positive low temperature response of a street performance pad.

The ability to realize the benefits of these different pad types in one compound provides opportunities for widespread application of this material.

Wilwood's rotors now come in a black coating. This will not affect performance at all. The portion of the rotor that comes in contact with the pad will wear off.

Wilwood's Brake Kit will only work with Wilwood Stainless Steel Lines, the stock lines have a different thread pattern
Sti years 06-07 have the wrong bolt pattern for any Wilwood Kit.

Fitment:
Subaru    Subaru Forester 2009-2011 All w/ Disc Brake Rear
Subaru    Subaru Forester 2009-2011 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2008-2012 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2008-2012 WRX, except STI
Saab       Saab 9-2X 2005-2006 All
Subaru    Subaru Forester 2001-2008 All w/ Disc Brake Rear
Subaru    Subaru Forester 2001-2008 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2001 2.2 Liter
Subaru    Subaru Impreza 2001 2.4 Liter
Subaru    Subaru Impreza 2006 All Coupe & Wagon except 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2007 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2002-2005 All Coupe & Wagon, Drum Brake Rear.
Subaru    Subaru Impreza 1999-2000 All w/ Disc Brake Rear
Subaru    Subaru Impreza 1999-2000 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2006 Coupe & Wagon 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2003 WRX
Subaru    Subaru Impreza 2004 WRX STI (5 x 100mm BC wheels)
Subaru    Subaru Impreza 2004-2007 WRX, except STI
Subaru    Subaru Legacy 2000-2002 All w/ Disc Brake Rear
Subaru    Subaru Legacy 2000-2002 All w/ Drum Brake Rear

Available with cross-drilled rotors and Black calipers only.

Installation Instructions



Wilwood Forged Dynalite Subaru 12-13 Inch Rear Big Brake Kit $1,700.00

Forged billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades.

Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle.

All kits are fully compatible with OE master cylinder output while retaining the full factory ABS functions.

Fitment:
Saab       Saab 9-2X 2005-2006 All
Subaru    Subaru Forester 2001-2008 All w/ Disc Brake Rear
Subaru    Subaru Impreza 2001 2.2 Liter
Subaru    Subaru Impreza 2001 2.4 Liter
Subaru    Subaru Impreza 2006 All Coupe & Wagon except 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2007 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 1999-2000 All w/ Disc Brake Rear
Subaru    Subaru Impreza 2006 Coupe & Wagon 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2003 WRX
Subaru    Subaru Impreza 2004-2005 WRX, except STI

Subaru Impreza 2008-2012 WRX, except STI

Features:
Caliper Type: 4-Piston
Rotor Size: 12.19" (309.62mm)
Rotor Type: 1pc Plain Face
Minimum Wheel Diameter: 15"

Available with cross-drilled rotors and Black calipers only.

Installation Instructions



Wilwood Front Subaru 6-Pot 12-13 Inch Big Brake Kit $1,850.00

This kit is one of the most cost effective ways to upgrade to true race performance braking on your Subaru. This is one of the best braking systems on the market. Wilwood is a the brake supplier to a couple different Racing Series.

Note:
Rotors come either slotted or slotted/cross drilled. Larger 17" wheels are necessary to accommodate the upgrade.

Fitment:
Subaru    Subaru Forester 2009-2011 All w/ Disc Brake Rear
Subaru    Subaru Forester 2009-2011 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2008-2012 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2008-2012 WRX, except STI
Saab       Saab 9-2X 2005-2006 All
Subaru    Subaru Forester 2001-2008 All w/ Disc Brake Rear
Subaru    Subaru Forester 2001-2008 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2001 2.2 Liter
Subaru    Subaru Impreza 2001 2.4 Liter
Subaru    Subaru Impreza 2006 All Coupe & Wagon except 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2007 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2002-2005 All Coupe & Wagon, Drum Brake Rear.
Subaru    Subaru Impreza 1999-2000 All w/ Disc Brake Rear
Subaru    Subaru Impreza 1999-2000 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2006 Coupe & Wagon 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2003 WRX
Subaru    Subaru Impreza 2004 WRX STI (5 x 100mm BC wheels)
Subaru    Subaru Impreza 2004-2007 WRX, except STI
Subaru    Subaru Legacy 2000-2002 All w/ Disc Brake Rear
Subaru    Subaru Legacy 2000-2002 All w/ Drum Brake Rear

Kit includes:
2 - 6-Pot Black Front Calipers
2 - Two Piece Front Rotors (slotted) - 12.88" Diameter
Mounting Brackets
BP-10 Pads,
Stainless Steel Brake Lines

Available with cross-drilled rotors and Black calipers only.

Installation Instructions



Wilwood Subaru Combo Kits 12-13 Inch 6-Pot Front & 4-Pot Rear $3,450.00

This is one of the best braking systems on the market. Wilwood is the brake supplier for several different Racing Series. The lightweight calipers (6 Pot Front and 4 Pot Rear) squeeze 13" & 12.1" rotors respectively. This Wilwood Brake Kit brings your Subaru WRX, and Forester's braking under control significantly faster than stock.

Kit includes:
2 - 6-Pot Black Front Calipers
2 - 4-Pot Black Rear Calipers
2 - Two Piece Front Rotors (slotted) - 12.88" Diameter
2 - Two Piece Rear Rotors (Slotted) - 12.19" Diameter
Mounting Brackets Front & Rear
BP-10 Pads, Front & Rear
Stainless Steel Brake Lines, Front & Rear

The BP-10 Pad is an all-new type of metallic composite friction pad compound. It possesses the medium to high temperature range friction characteristics of a metallic compound race pad, with the quieter engagement, lower dust, and positive low temperature response of a street performance pad.

Wilwood's rotors now come with a black coating. This will not affect performance at all. The portion of the rotor that comes in contact with the pad will wear off.

Wilwood Brake kits will only work with the Wilwood stainless steel lines, stock lines have a different thread pattern, SS Brake Lines are included in this kit.

NOTES:
Wilwood Brake Kits WILL NOT FIT STi MODELS except 2004 STi.
For 2006 WRX, This Wilwood Kit WILL NOT FIT THE REAR BRAKE SETUP, 2006 WRX owners must change the rear backing plate to 2005 WRX or earlier.

Larger 17" wheels are necessary to accommodate the upgrade.

Fitment:
Subaru    Subaru Forester 2009-2011 All w/ Disc Brake Rear
Subaru    Subaru Forester 2009-2011 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2008-2012 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2008-2012 WRX, except STI
Saab       Saab 9-2X 2005-2006 All
Subaru    Subaru Forester 2001-2008 All w/ Disc Brake Rear
Subaru    Subaru Forester 2001-2008 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2001 2.2 Liter
Subaru    Subaru Impreza 2001 2.4 Liter
Subaru    Subaru Impreza 2006 All Coupe & Wagon except 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2007 All Coupe & Wagon, Disc Brake Rear
Subaru    Subaru Impreza 2002-2005 All Coupe & Wagon, Drum Brake Rear.
Subaru    Subaru Impreza 1999-2000 All w/ Disc Brake Rear
Subaru    Subaru Impreza 1999-2000 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2006 Coupe & Wagon 2.5i, Disc Brake Rear
Subaru    Subaru Impreza 2002-2003 WRX
Subaru    Subaru Impreza 2004 WRX STI (5 x 100mm BC wheels)
Subaru    Subaru Impreza 2004-2007 WRX, except STI
Subaru    Subaru Legacy 2000-2002 All w/ Disc Brake Rear
Subaru    Subaru Legacy 2000-2002 All w/ Drum Brake Rear
Subaru    Subaru Impreza 2008-2012 WRX, except STI

Available with cross-drilled rotors and Black calipers only.

Installation Instructions



Ksport Procomp Rear Big Brake Kit

13 In. Rotor 6 Piston Caliper Subaru Impreza WRX STI 08+

Ksport big brake kits provide the ultimate in stopping power for your vehicle. Integrating new brake technology into the design of the kits allows for a kit that highly reduces brake fade and continually cools and refreshes the brake pads surface under braking. These brake systems are designed for easy installation with minimal tools required (in most applications). Ksports extreme lightweight caliper comes in differential bore configuration. It is machined from aircraft quality billet, weighs just over 5lbs. each, and has machined in protection grooves for the bridge tubes. Aluminum pistons, high temperature seals, and stainless steel brake pad wear plates are also standard on each caliper design. The opposed piston caliper design greatly improves pad wear and caliper rigidity over the OEM design. The stainless steel brake lines stop expansion under pressure.

Most applications utilize the 2-piece floating disc assembly, which reduces weight both rotating and unsprung. The floating disc also stops thermal stresses of extreme heat from warping the disc or cupping the braking surface. The unique slot design on the rotor greatly reduces braking noise and expels gas and pad debris faster than conventional slot designs. Every rotor is always heat treated and balanced before shipment for the best possible performance. Contact Us with any questions.

Features:
6 Piston Aluminum calipers.
D.O.T. Compliant Stainless steel brake lines.
Machined aluminum hats.
Carbon steel brackets.
330mm (13") large ventilated discs (17" wheels required) .
High quality Ksport SC5 street brake pads (RC1 race pads available for additional cost)

Ksport Procomp Rear Big Brake Kit 13 In. Rotor 6 Piston Caliper $1800.00

Call for information on rotor/wheel applications



Ksport Procomp Front Big Brake Kit

13 In. Rotor 8 Piston Caliper Subaru Impreza WRX STI 08+

Ksport big brake kits provide the ultimate in stopping power for your vehicle. Integrating new brake technology into the design of the kits allows for a kit that highly reduces brake fade and continually cools and refreshes the brake pads surface under braking. These brake systems are designed for easy installation with minimal tools required (in most applications). Ksports extreme lightweight caliper comes in differential bore configuration. It is machined from aircraft quality billet, weighs just over 5lbs. each, and has machined in protection grooves for the bridge tubes. Aluminum pistons, high temperature seals, and stainless steel brake pad wear plates are also standard on each caliper design. The opposed piston caliper design greatly improves pad wear and caliper rigidity over the OEM design. The stainless steel brake lines stop expansion under pressure.

Most applications utilize the 2-piece floating disc assembly, which reduces weight both rotating and unsprung. The floating disc also stops thermal stresses of extreme heat from warping the disc or cupping the braking surface. The unique slot design on the rotor greatly reduces braking noise and expels gas and pad debris faster than conventional slot designs. Every rotor is always heat treated and balanced before shipment for the best possible performance. Contact Us with any questions.

Features:
8 Piston Aluminum calipers.
D.O.T. Compliant Stainless steel brake lines.
Machined aluminum hats.
Carbon steel brackets.
330mm (13") large ventilated discs (17" wheels required) .
High quality Ksport SC5 street brake pads (RC1 race pads available for additional cost)

Ksport Procomp Front Big Brake Kit 13 In. Rotor 8 Piston Caliper $2300.00

Call for information on rotor/wheel applications



Wilwood "PolyMatrix" 4 & 6 Piston Front Brake Non-Bedded Pad $140.00

Wilwood friction pads are produced to specific chemical and physical material requirements to meet the high performance demands of racing disc brake systems. Because of the wide range of racing usage (short track, super speedway, dirt, drag) Wilwood has developed specific material compounds to meet specific needs. Experimentation is often necessary to determine the optimal brake pads for an application. Such variables as caliper size, rotor type, rotor operating temperature, race duration, and driving habits all affect brake pad performance. Wilwood high performance brake pads are described in general; your actual selection should combine this information with your own testing and experience.

Brake pad performance is generally measured using its coefficient of friction (cf), i.e. the degree of friction (drag) between the pad and rotor. This friction varies with pad material, rotor material, and operating temperature. The pad descriptions (following the pad configuration drawings) are generally evaluated on the basis of a pad material coefficient of friction variance over a particular temperature range.

NOTE: All Wilwood brake pad sets with a 'K' suffix on the part number are packaged four pads to a box, in axle sets. The diagram on the following page illustrates the outline dimensions of the backing plates and friction material on each type of brake pad.

Wilwood Pads only fit Wilwood Calipers
The "Q" compound are the street pads (Q = quiet...at least compared to their race compounds)
